Site Specific: Low Energy House

Architecture for London - Muswell Hill, London, 2022

London’s historical ‘terraced’ houses are a defining characteristic of the city’s housing stock and they continue to be modified, converted, extended and adapted to a multitude of uses. The increasingly pressing question of how these buildings can be adapted while becoming more energy efficient is explored here by the founder of Architecture for London, Ben Ridley, with the strategy he followed for his own home in North London.

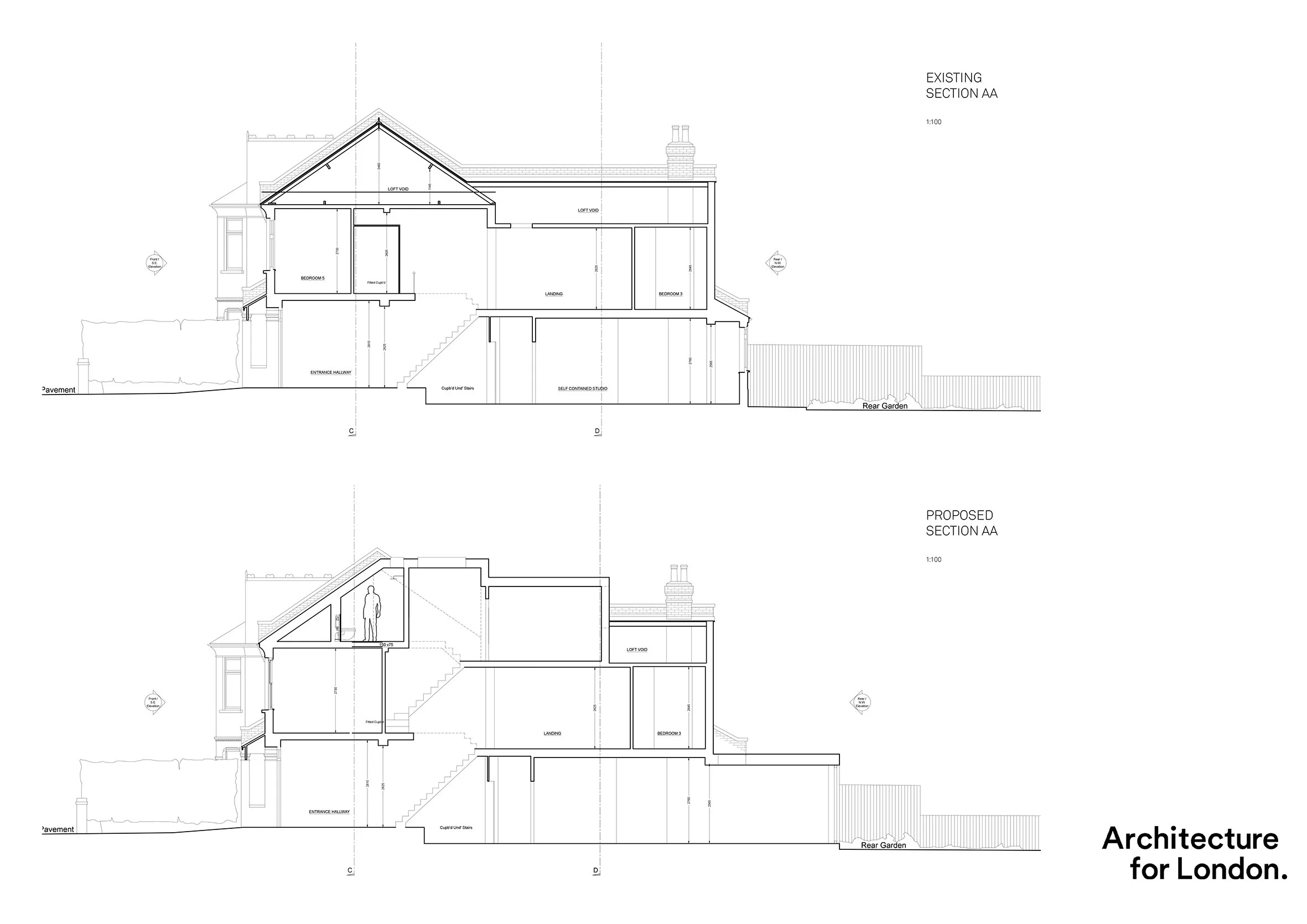

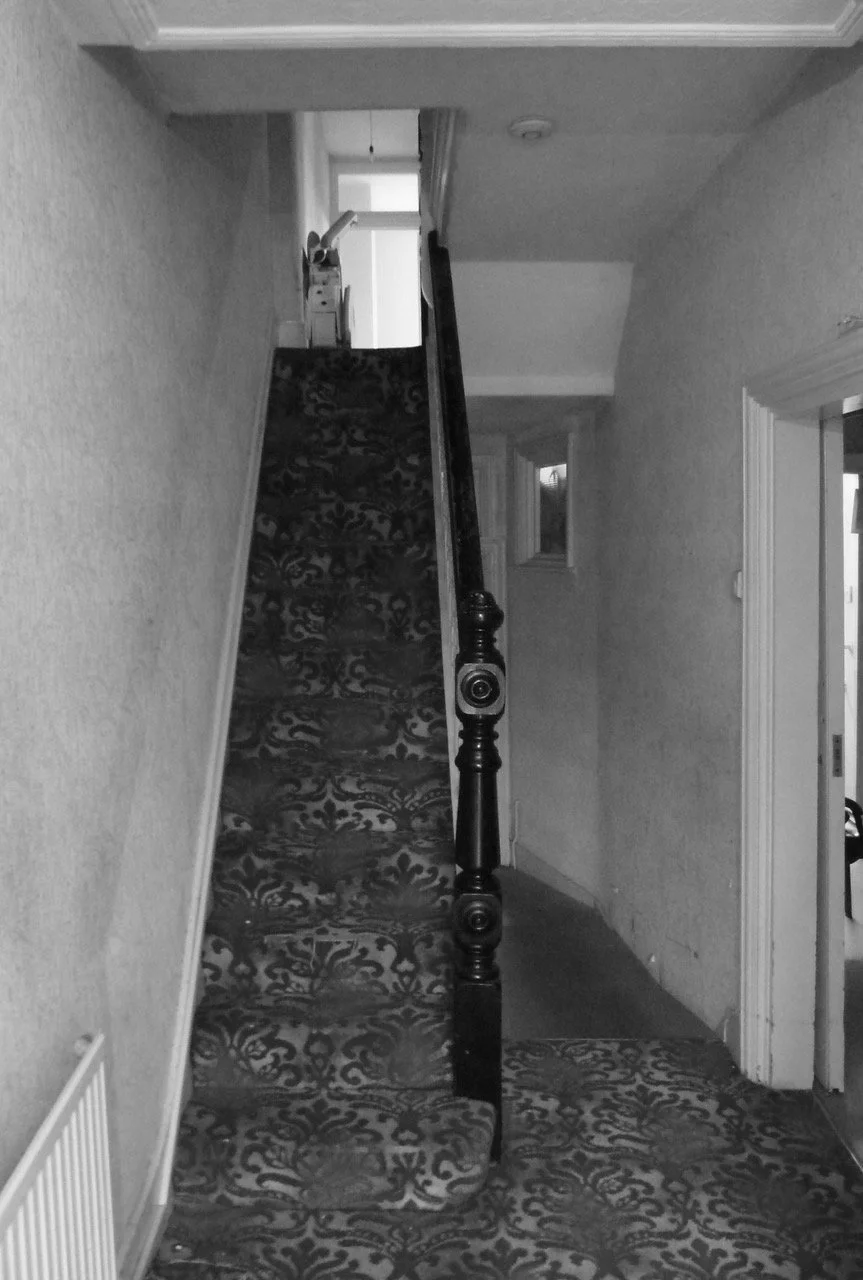

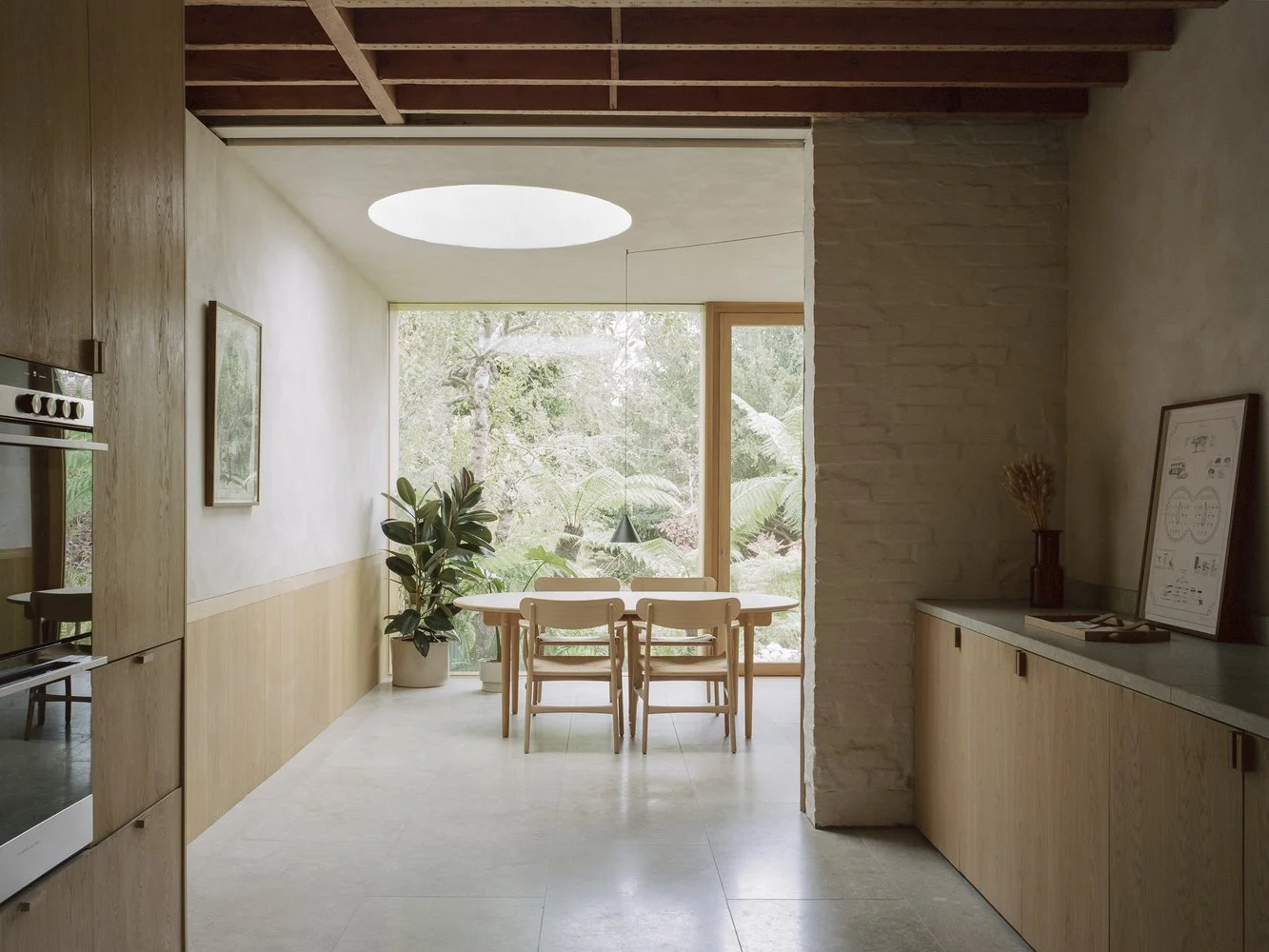

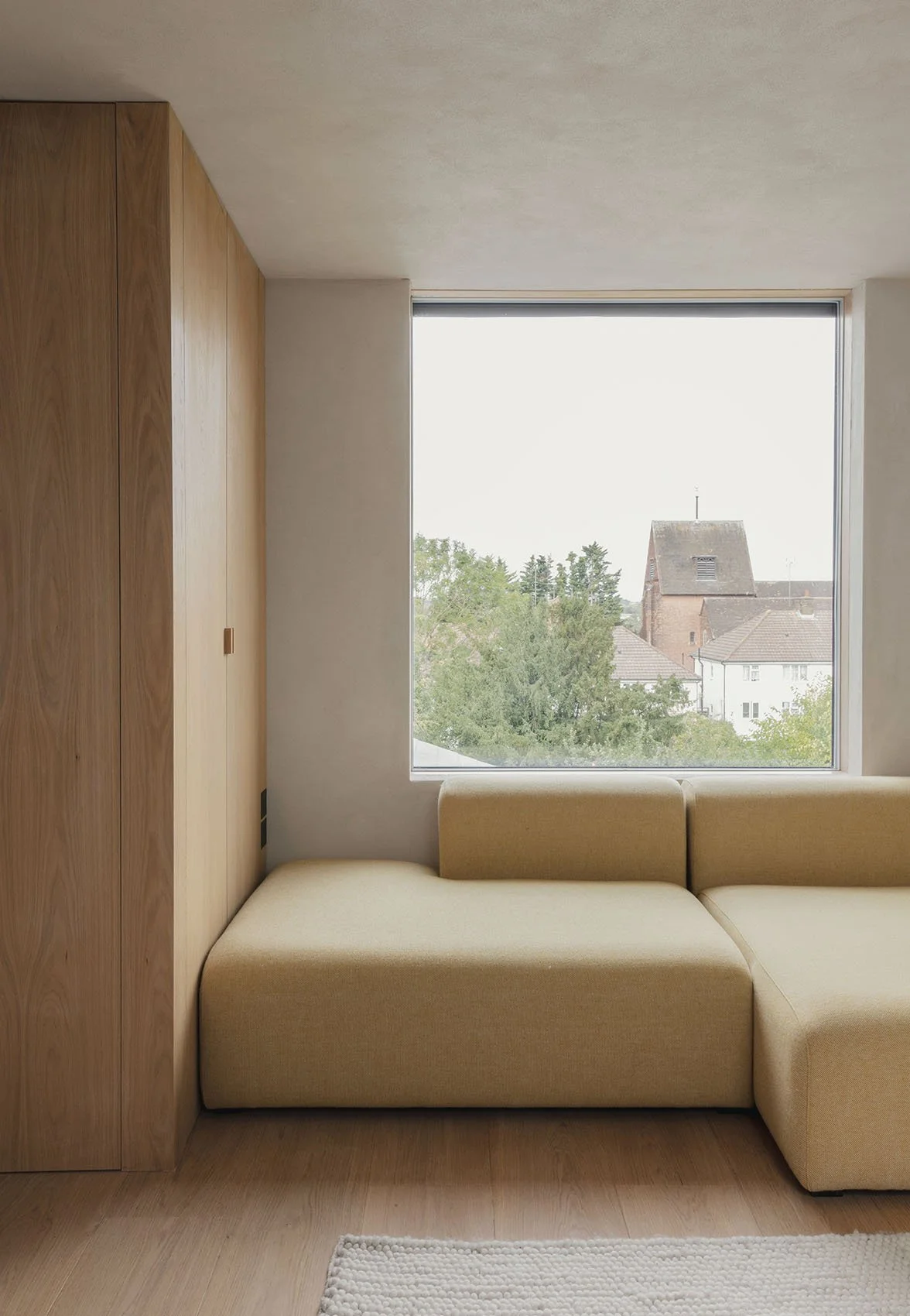

AfL An Edwardian terrace in Muswell Hill was extended and refurbished to create a comfortable, low energy house. The original structure of the house was revealed, its modest beauty celebrated. Energy requirements are reduced dramatically by insulating, triple-glazing and improving airtightness. New additions include a rear extension and a loft conversion.

This project aims to be an exemplar for the sustainable refurbishment of a typical terraced home in London, with a constrained budget. Both embodied energy and energy in-use have been considered in depth.

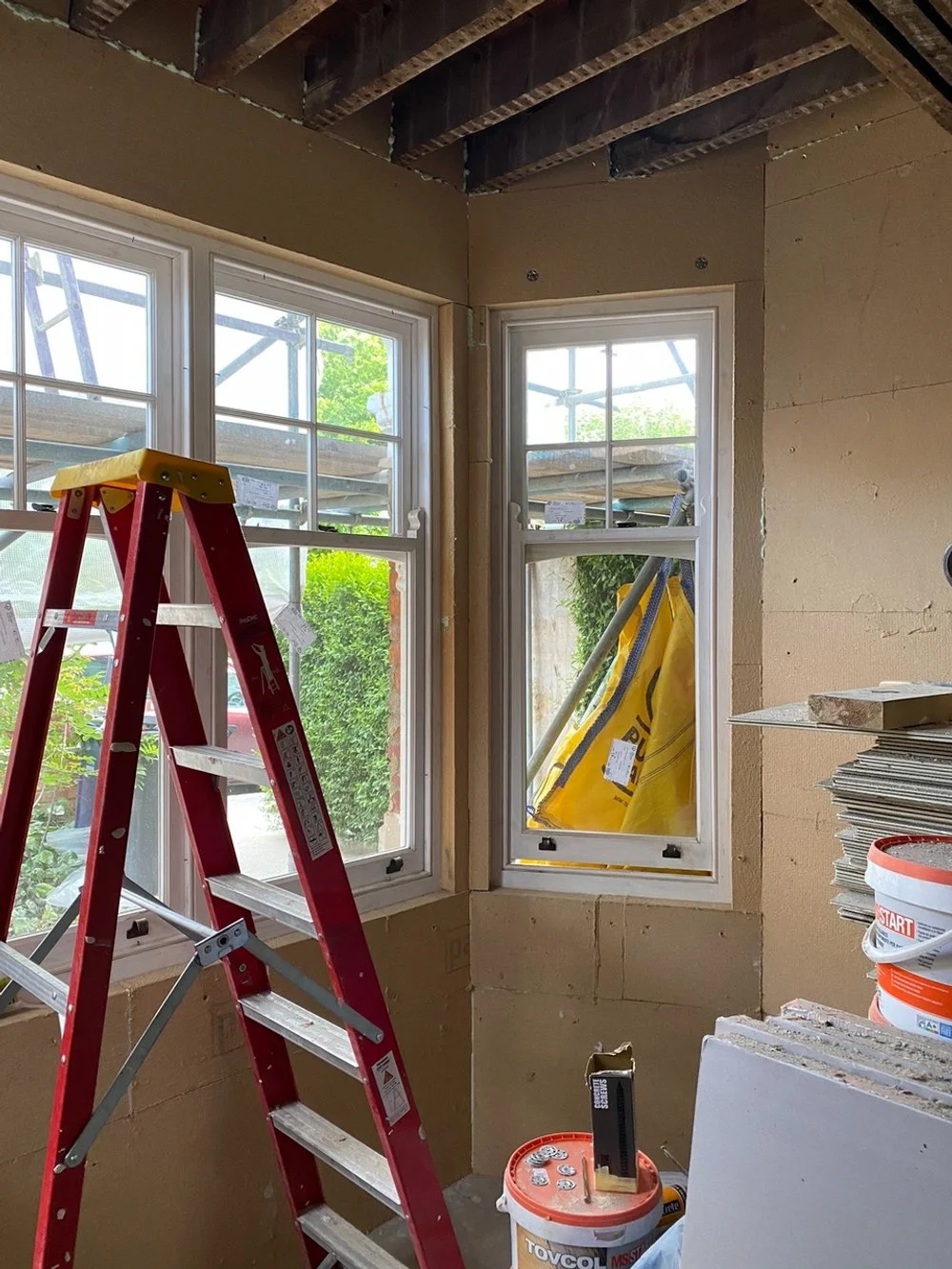

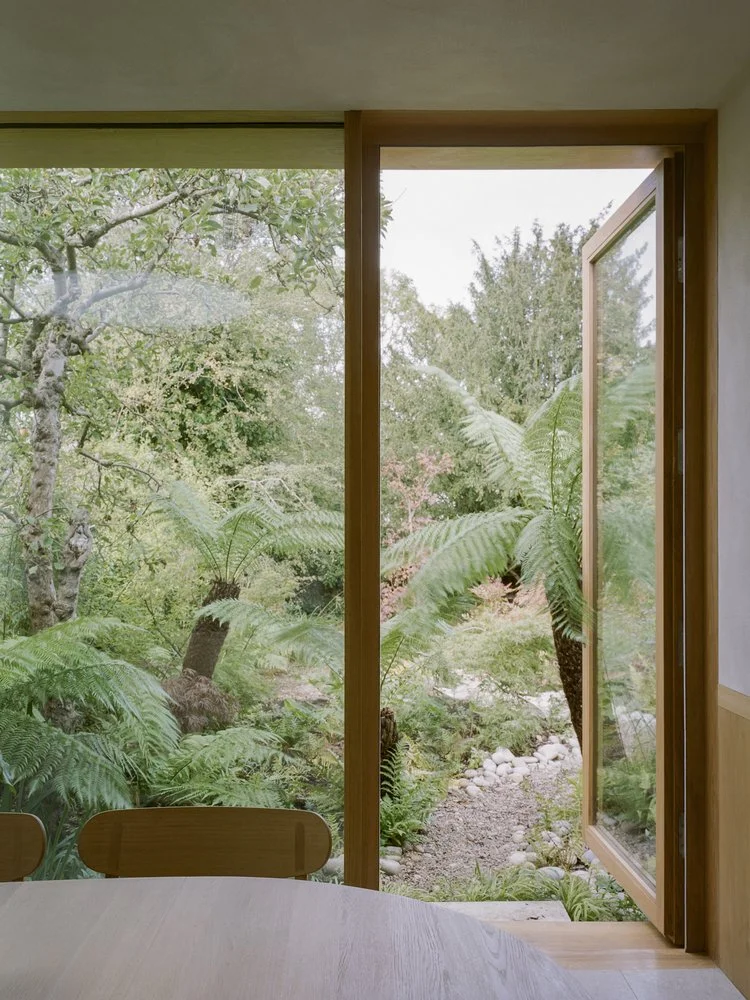

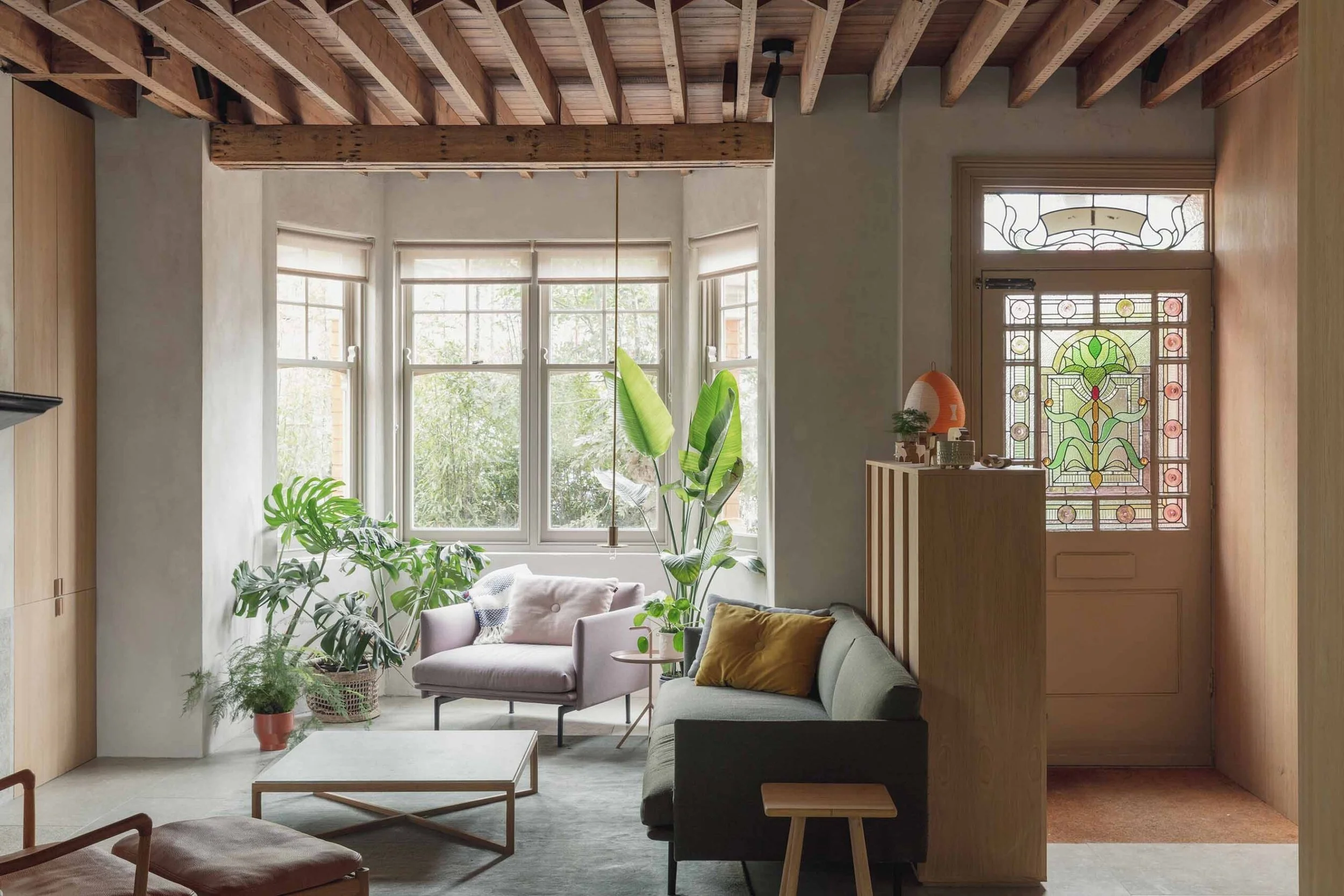

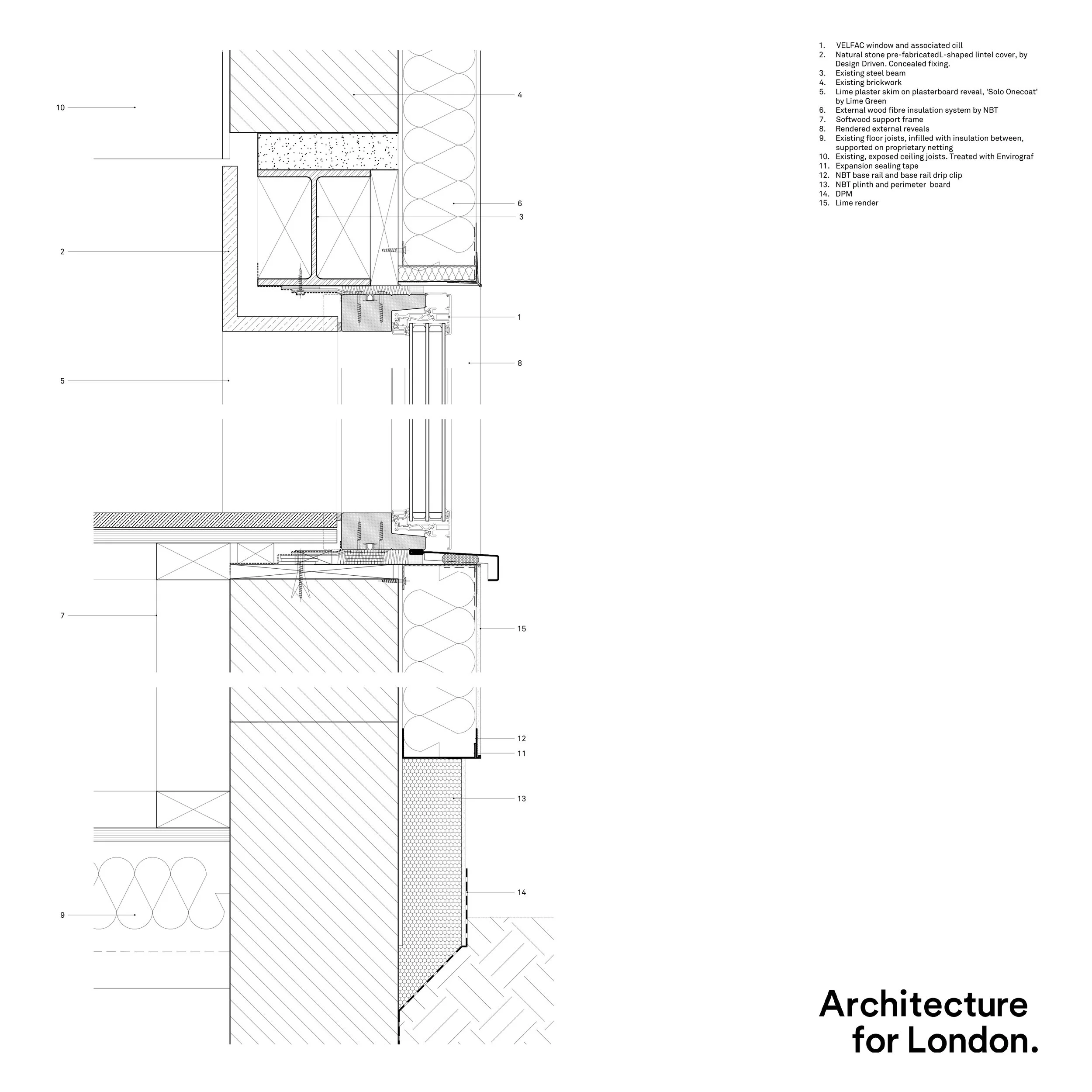

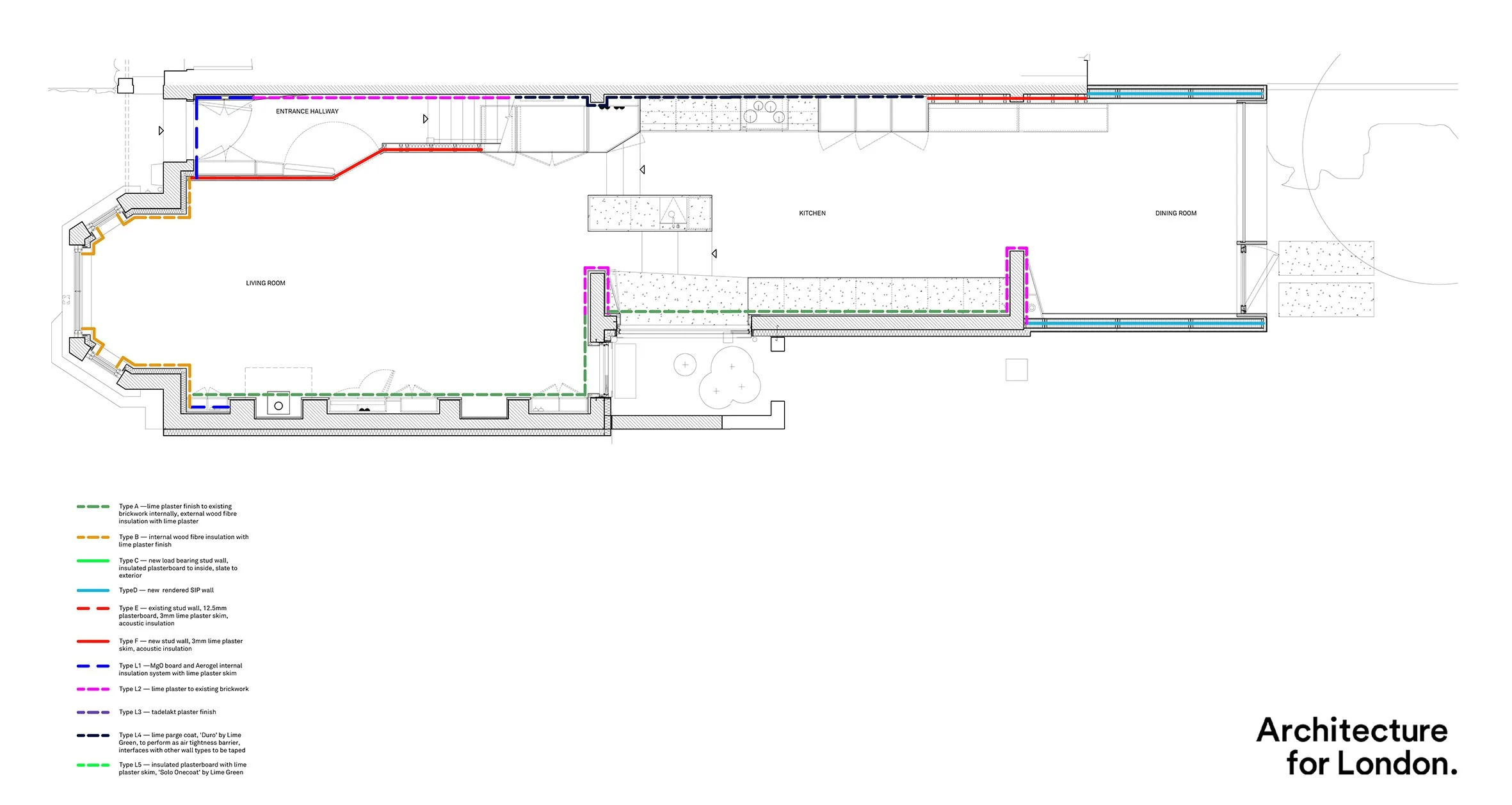

Design features include timber structure, triple glazing, a continuous airtight layer and insulation to the entire building envelope. Walls were insulated externally at the side and rear, and internally at the front with wood fibre. Insulating internally at the front has allowed the original Edwardian facade to be preserved.

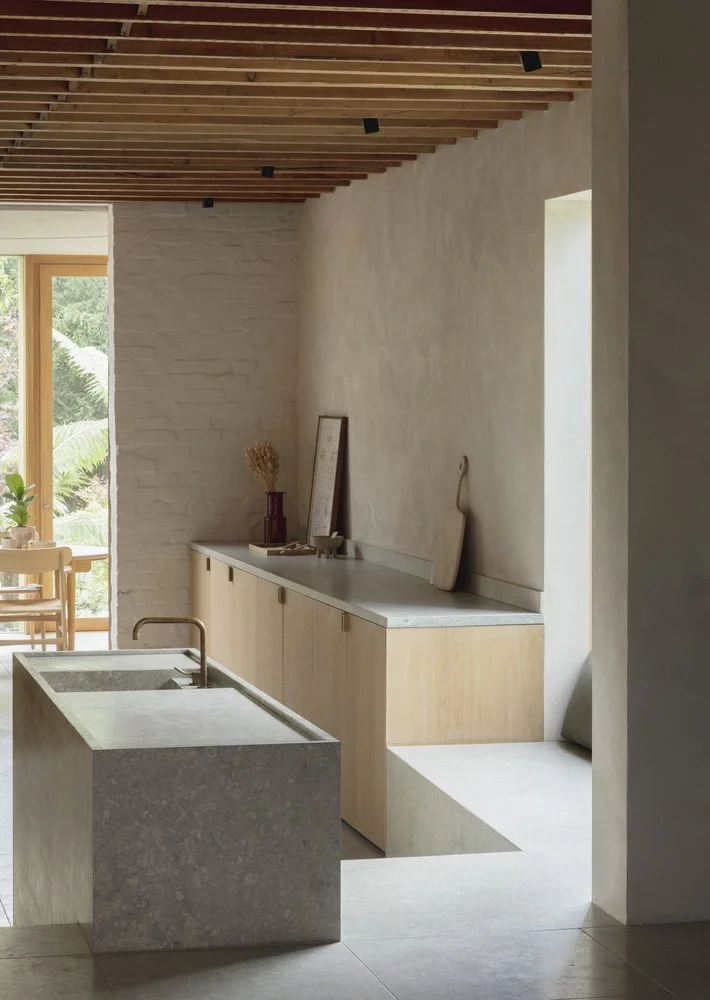

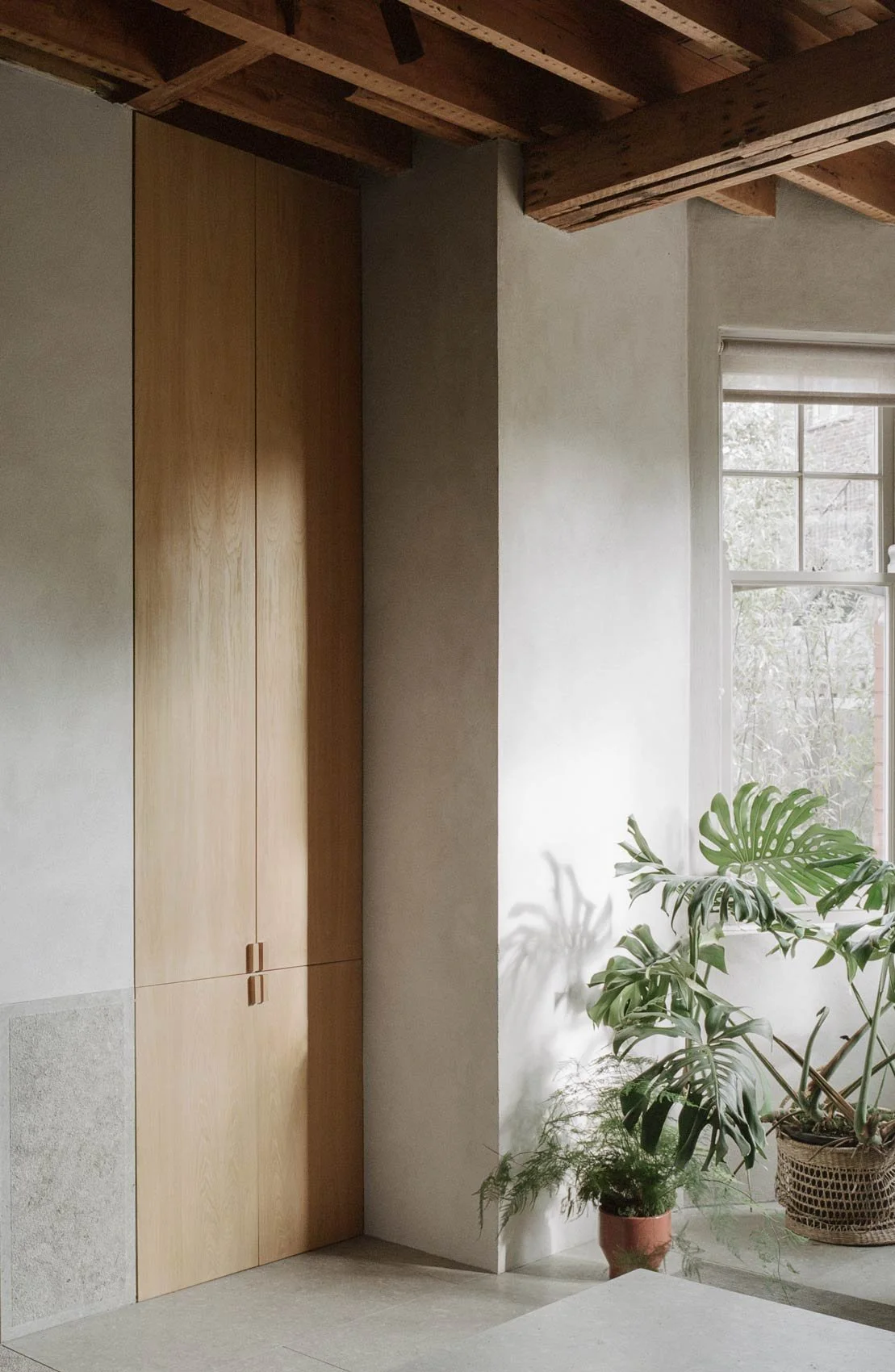

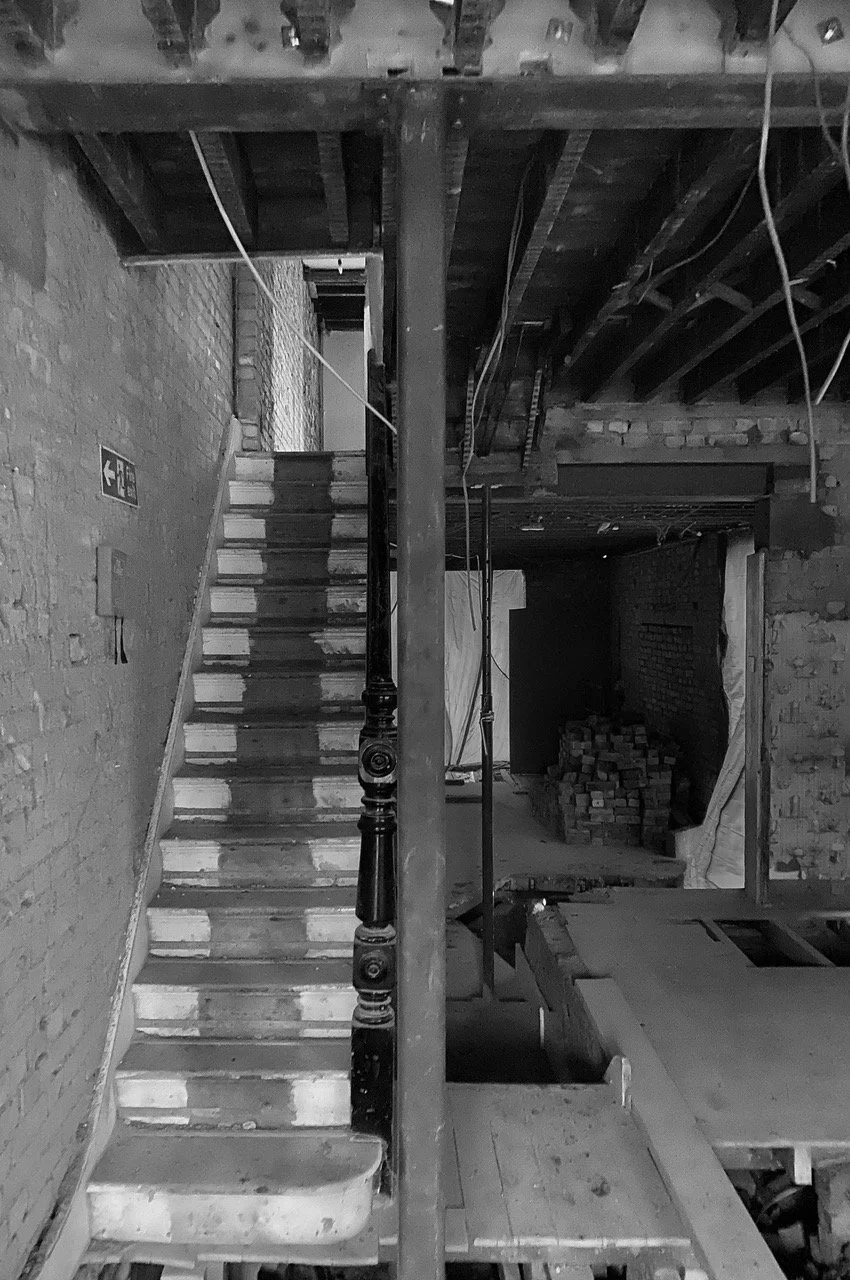

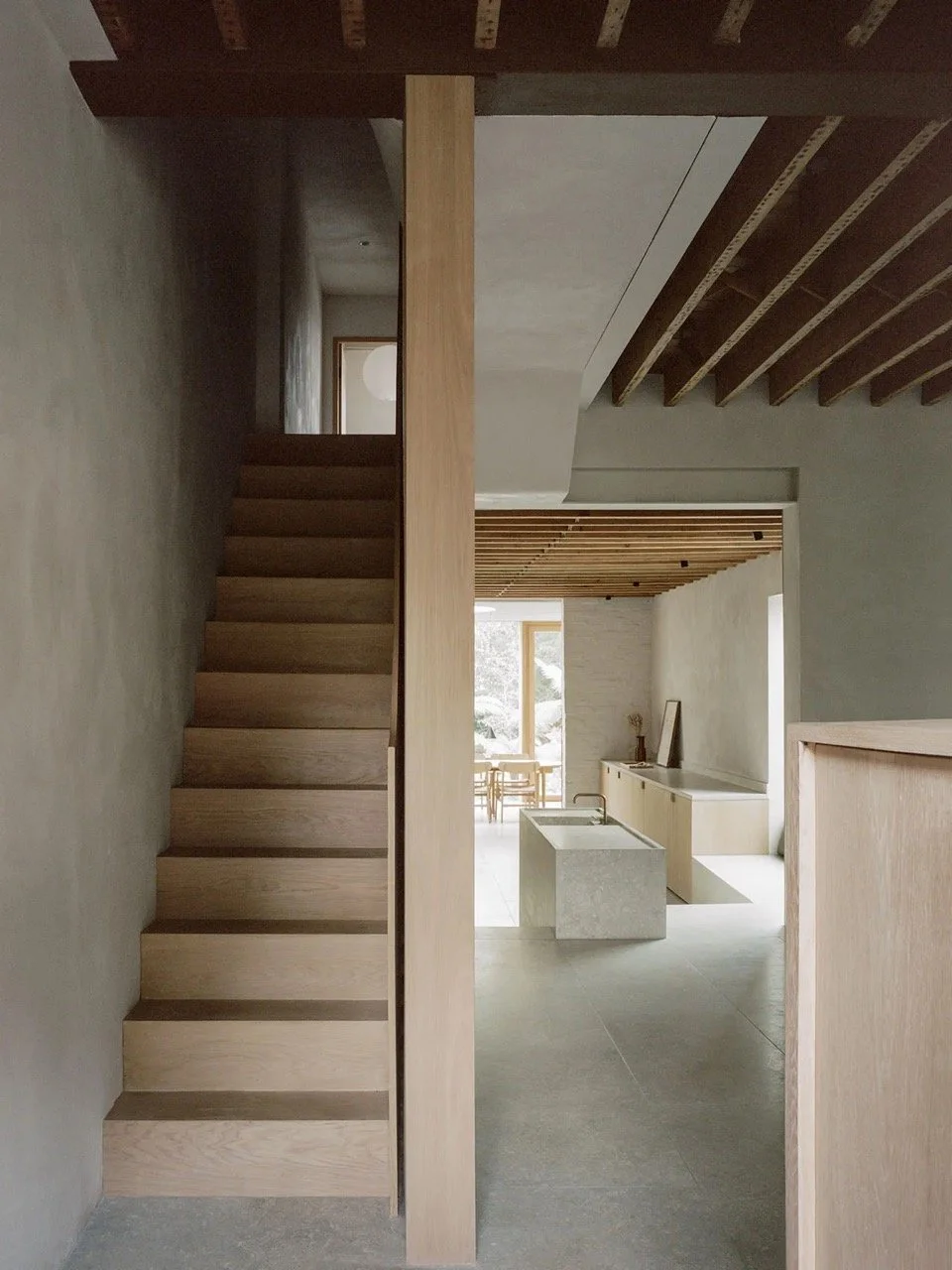

Masonry nib walls were retained at ground floor to avoid energy-intensive steel box frames. Natural materials including stone, timber and lime plaster were used throughout rather than cement-based products.

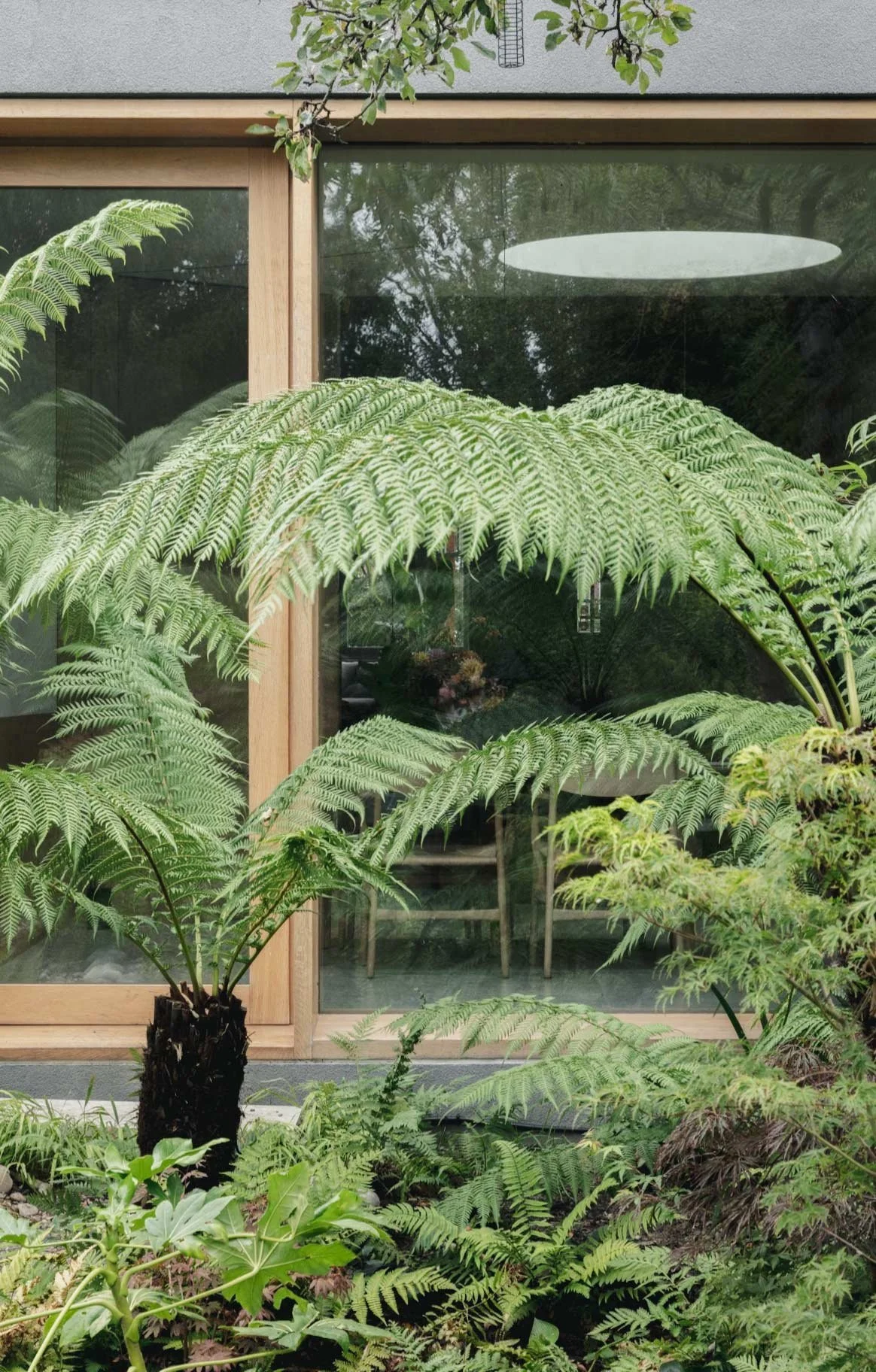

The rear extension was built in highly insulated 172mm SIPS and all existing building elements achieved a Passivhaus standard U-value of 0.15 or better. An MVHR system provides pre-heated fresh air, creating a warm and comfortable home. The system also filters the incoming air, removing pollen, diesel particulates and NOx to create a healthy indoor environment.

NOTES

Many thanks to Ben Ridley, director of Architecture for London, for sharing this project with us.

Photographs © Architecture for London and otherwise Lorenzo Zandri and Christian Brailey where noted.

Published 26th July 2023.
